ElpasoLight nEL-6x13c-SiPM

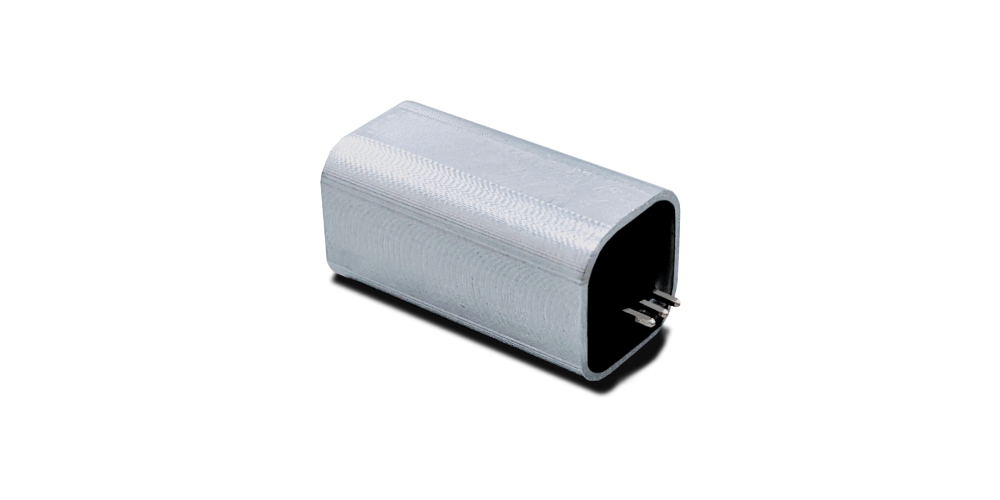

ElpasoLight CLYC nEL-6x13c-SiPM scintillation detector
$445

12 in stock (can be backordered)

Specification

Dual-mode neutron-gamma natural (7%) 6Li enriched nEL-6x13c-SiPM Scintillation Detector Assembly includes 6x6x13 mm high-performance ElpasoLight crystal coupled to MicroFJ SiPM

Detector type Cs2LiYCl6
Detector size 6x6x13 mm
Energy range From 10 keV
Typical resolution 5% at 662 keV
Ambient dose rate N/A
Typical sensitivity,
cps/(µSv·h-1)
8 (137Cs)
Neutron detection Yes
Readout SiPM
Dimensions 9x9x23 mm
Weight 5 g
Efficiency Calculator

The calculations are based on NIST XCOM: Photon Cross Sections Database. The results are for general information purpose only. You should not rely upon them as a basis for making any decisions.

Select Dimension Units
Select Dose Rate Units
Calculated for: keV
