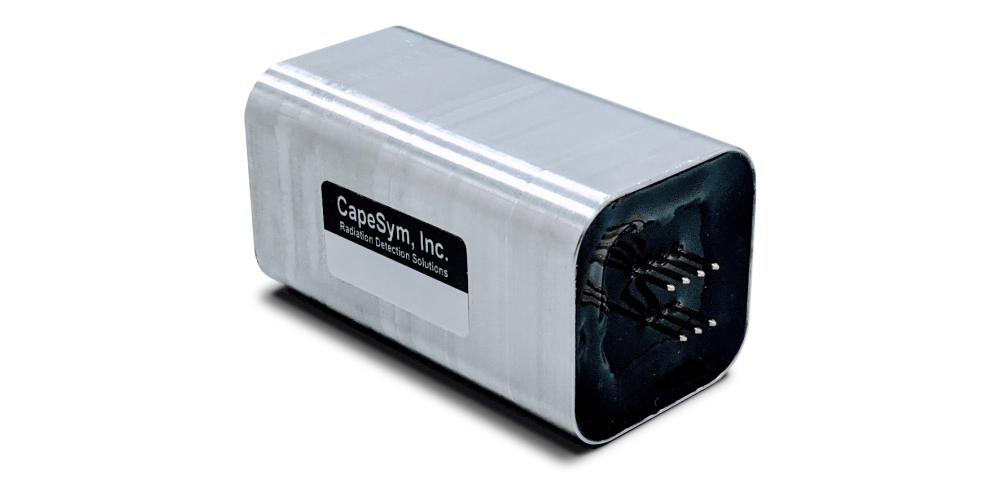

MegaPixel nEL-28x51c-SiPM-T
nElpasoLight CLYC MegaPixel scintillation gamma neutron detector
$3,910
Specification

Dual-mode neutron-gamma natural (7%) 6Li enriched MegaPixel nEL-28x51c Scintillation Detector Assembly includes 28x28x50.8 mm high-performance ElpasoLight CLYC crystal coupled to SiPM array with T-sensor.

Detector type CLYC – Cs2LiYCl6
Detector size 28x28x50.8 mm
Energy range From 20 keV
Typical resolution 6% at 662 keV
Ambient dose rate N/A
Typical sensitivity,
cps/(µSv·h-1)
635 (137Cs)
480 (60Co)
Neutron detection Yes
Readout SiPM
Dimensions 31x31x64 mm
Weight 150 g
