ScintiClear SC-38x25-R6231
ScintiClear SrI2(Eu) SC-38x25-R6231 scintillation detector
$4,660
Specification

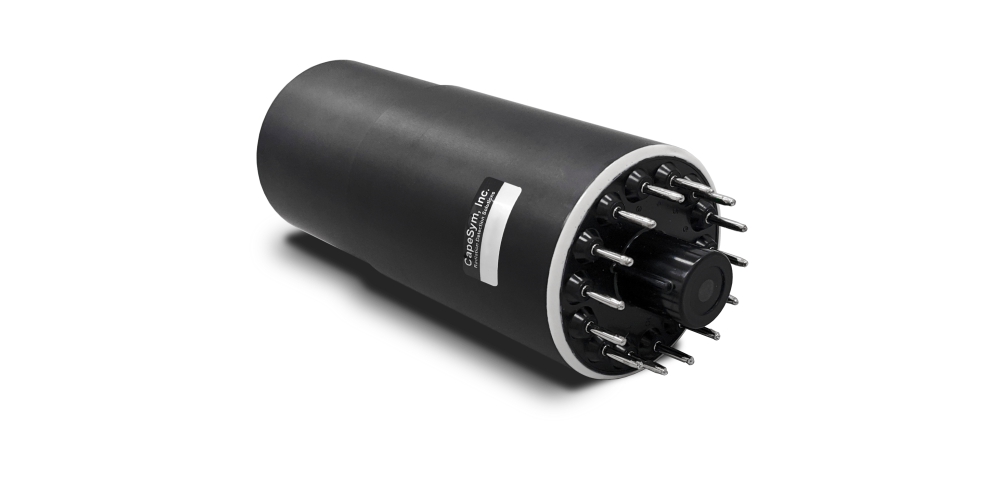

SC-38×25 Scintillation Detector Assembly includes Ø38.1×25.4 mm (Ø1.5”x1”) high-performance ScintiClear crystal coupled to Hamamatsu R6231 PMT hermetically packed in an Aluminum housing with 0.5 mm thick walls and integrated magnetic shield and temperature sensor (optional)

Detector type SrI2(Eu)
Detector size Ø38.1×25.4 mm
Energy range From 10 keV
Typical resolution 3% at 662 keV
Ambient dose rate N/A
Typical sensitivity,
cps/(µSv·h-1)
600 (137Cs)
450 (60Co)
Neutron detection No
Readout  PMT+JEDEC B14-38
Dimensions Ø60×143 mm
Weight 470 g
Efficiency Calculator

The calculations are based on NIST XCOM: Photon Cross Sections Database. The results are for general information purpose only. You should not rely upon them as a basis for making any decisions.

Select Dimension Units
Select Dose Rate Units
Calculated for: keV
