Scintillation Crystal NaI-200x10-DW
Request a quote
Specification

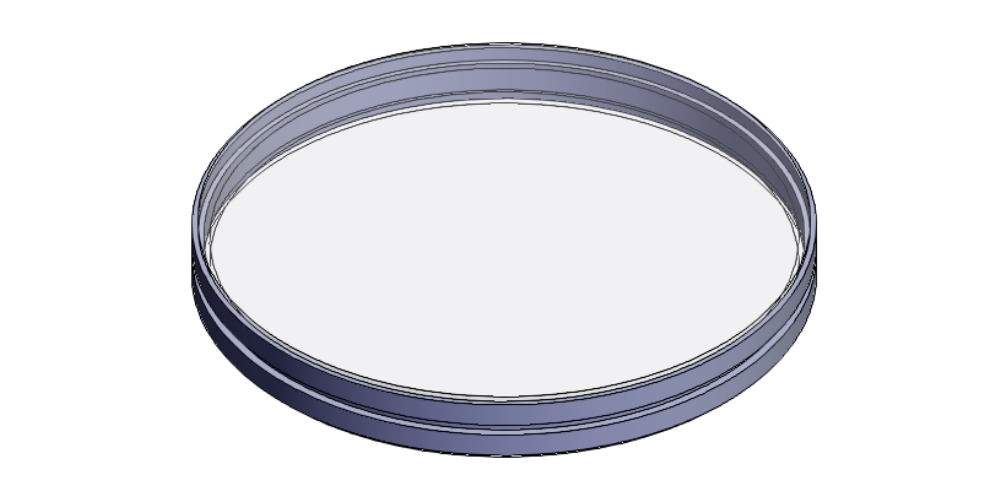

NaI(Tl) scintillation crystal Ø200×10 mm hermetically packed in an Aluminum housing with two Ø208 mm optical windows

Detector type NaI(Tl)
Detector size Ø200×10 mm
Energy range From 50 keV
Typical resolution N/A% at 662 keV
Ambient dose rate N/A
Typical sensitivity,
cps/(µSv·h-1)
6500 (137Cs)
4700 (60Co)
Neutron detection No
Dimensions Ø212×25 mm
Weight 2500 g
Efficiency Calculator

The calculations are based on NIST XCOM: Photon Cross Sections Database. The results are for general information purpose only. You should not rely upon them as a basis for making any decisions.

Select Dimension Units
Select Dose Rate Units
Calculated for: keV
