Scintillation Crystal NaI-25x38
Scintillation Crystal Sodium Iodide NaI(Tl) NaI-25x38
$300
Specification

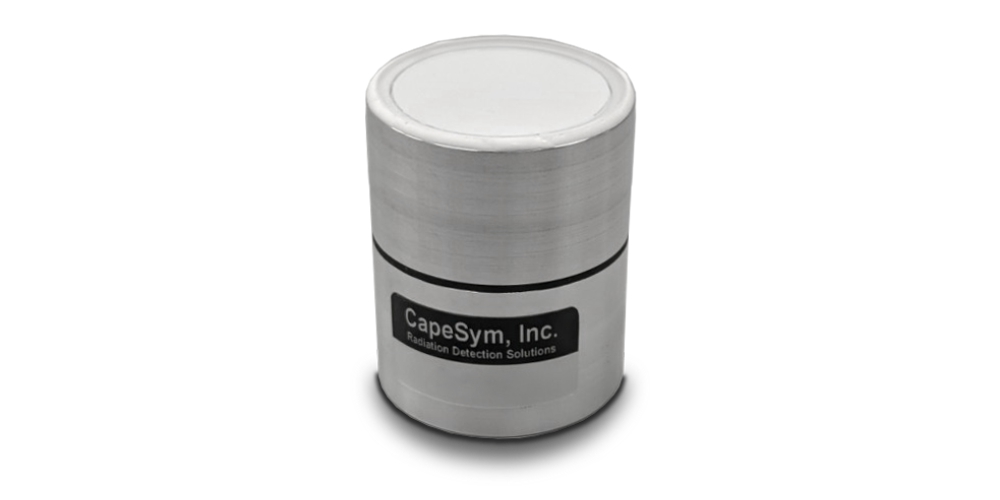

NaI(Tl) scintillation crystal Ø25.4×38.1 mm (Ø1”x1.5”) hermetically packed in an Aluminum housing with 1 mm thick walls and Ø30 mm fused silica window

Detector type NaI(Tl)
Detector size Ø25.4×38.1 mm
Energy range From 15 keV
Typical resolution 6.5% at 662 keV
Ambient dose rate N/A
Typical sensitivity,
cps/(µSv·h-1)
335 (137Cs)
Neutron detection No
Dimensions Ø32×45 mm
Weight 95 g
Efficiency Calculator

The calculations are based on NIST XCOM: Photon Cross Sections Database. The results are for general information purpose only. You should not rely upon them as a basis for making any decisions.

Select Dimension Units
Select Dose Rate Units
Calculated for: keV
