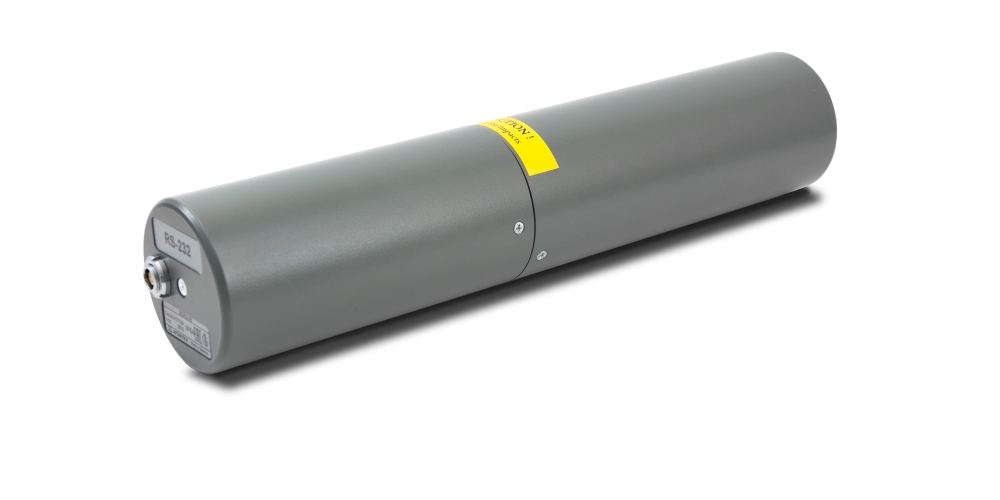

Scintillation Probe BDKG-05M
NaI(Tl) Scintillation Gamma Probe BDKG-05M ATOMTEX
$5,370
Specification

BDKG-05M Scintillation Gamma Radiation Probe includes NaI(Tl) Ø40х40 mm detector assembly with LED stabilization

Detector type / size NaI(Tl) / Ø40х40 mm
Energy range 20 keV – 3 MeV
Typical resolution 7.5% at 662 keV
Ambient dose rate 30 nSv/h – 300 µSv/h
Typical sensitivity,
cps/(µSv·h-1)
800 (137Cs)
420 (60Co)
Protection class IP54
Interface RS232 / RS485 / USB
Operation temperature -20°C to +50°C
Dimensions / weight Ø60х291 mm / 0.9 kg
Efficiency Calculator

The calculations are based on NIST XCOM: Photon Cross Sections Database. The results are for general information purpose only. You should not rely upon them as a basis for making any decisions.

Select Dimension Units
Select Dose Rate Units
Calculated for: keV
