Scintillation Probe BDKG-05S

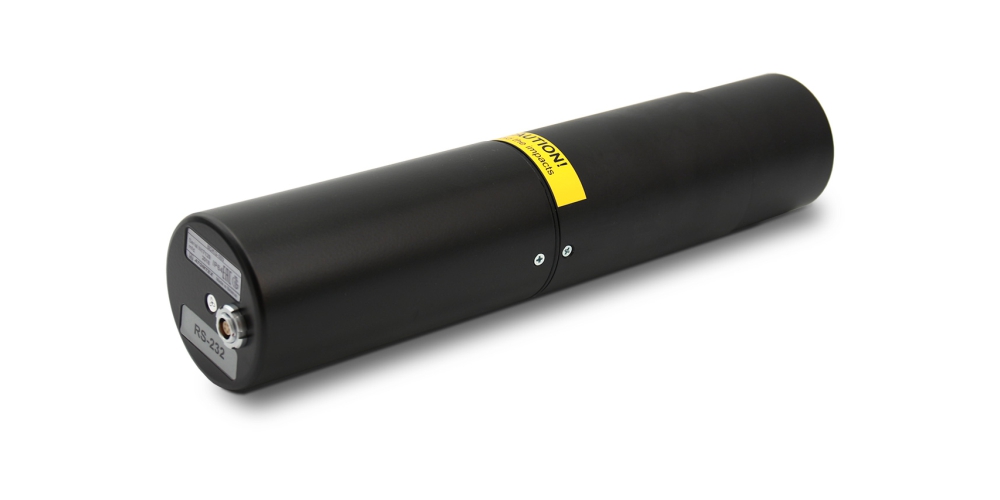

BDKG-05S Scintillation Gamma Radiation Probe with ScintiClear SrI2(Eu) crystal
Request a quote

1 in stock (can be backordered)

Specification

BDKG-05S Scintillation Gamma Radiation Probe includes high-performance ScintiClear SrI2(Eu) SC-38×38 (Ø1.5”x1.5”) detector assembly with LED temperature stabilization and digital MCA. Lightweight and sensitive AT1120ME Spectrometer/RIID based on BDKG-05S is available through our partner www.zievert.com.

Detector Type / Size SrI2(Eu) / Ø38.1×38.1 mm
Energy Range 20 – 3000 keV
Typical Resolution 3.2% at 662 keV
Ambient Dose Rate 30 nSv/h – 150 µSv/h
Typical Sensitivity,
cps/(µSv·h-1)
850 (137Cs)
450 (60Co)
Protection Class IP67
Interface RS485 / RS232 / USB
Operation Temperature -20°C to +50°C
Dimensions / Weight Ø60×282 mm / 0.9 kg
Efficiency Calculator

The calculations are based on NIST XCOM: Photon Cross Sections Database. The results are for general information purpose only. You should not rely upon them as a basis for making any decisions.

Select Dimension Units
Select Dose Rate Units
Calculated for: keV
