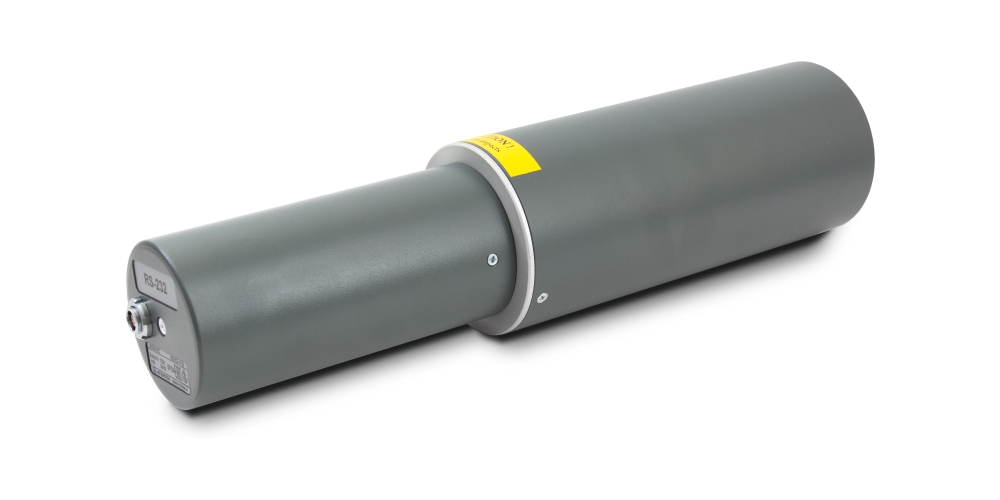

Scintillation Probe BDKG-11M
$5,720
Specification

BDKG-11M Scintillation Gamma Radiation Probe includes NaI(Tl) Ø63.5×63.5 mm (Ø2.5”x2.5”) detector assembly with LED stabilization

Detector Type / Size NaI(Tl) / Ø63.5х63.5 mm
Energy Range 20 – 3000 keV
Typical Resolution 7.5% at 662 keV
Ambient Dose Rate 30 nSv/h – 150 µSv/h
Typical Sensitivity,
cps/(µSv·h-1)
2200 (137Cs)
1200 (60Co)
Protection Class IP54
Interface RS232 / RS485 / USB
Operation Temperature -20°C to +50°C
Dimensions / Weight Ø76х315 mm / 1.7 kg
Efficiency Calculator

The calculations are based on NIST XCOM: Photon Cross Sections Database. The results are for general information purpose only. You should not rely upon them as a basis for making any decisions.

Select Dimension Units
Select Dose Rate Units
Calculated for: keV
