Scintillation Probe BDKG-19M

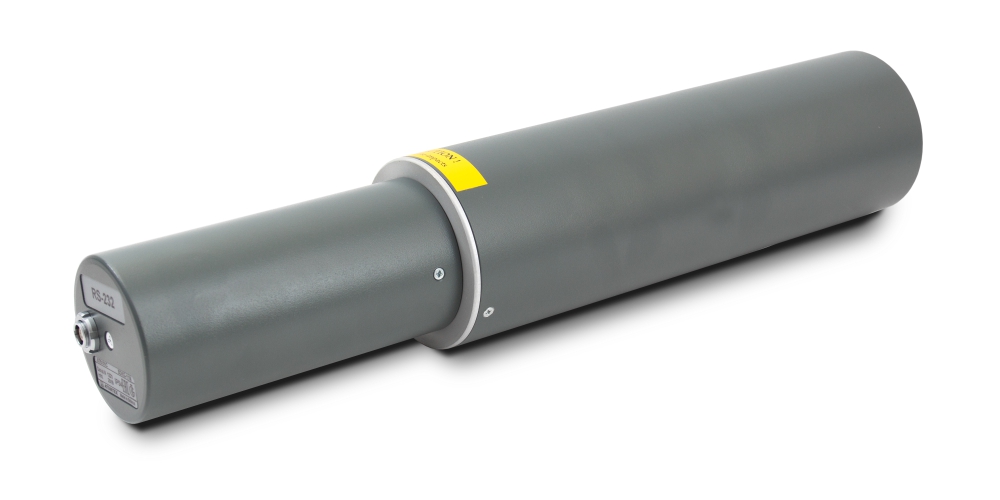

NaI(Tl) Scintillation Gamma Probe BDKG-19M ATOMTEX
$8,940
Specification

BDKG-19M Scintillation Gamma Radiation Probe includes NaI(Tl) Ø63х160 mm detector assembly with LED stabilization

Detector type / size NaI(Tl) / Ø63×160 mm
Energy range 20 keV – 3 MeV
Typical resolution 8% at 662 keV
Ambient dose rate 30 nSv/h – 50 µSv/h
Typical sensitivity,
cps/(µSv·h-1)
6000 (137Cs)
2500 (60Co)
Protection class IP54
Interface RS232 / RS485 / USB
Operation temperature -20°C to +50°C
Dimensions / weight Ø76×425 mm / 3 kg
Efficiency Calculator

The calculations are based on NIST XCOM: Photon Cross Sections Database. The results are for general information purpose only. You should not rely upon them as a basis for making any decisions.

Select Dimension Units
Select Dose Rate Units
Calculated for: keV
