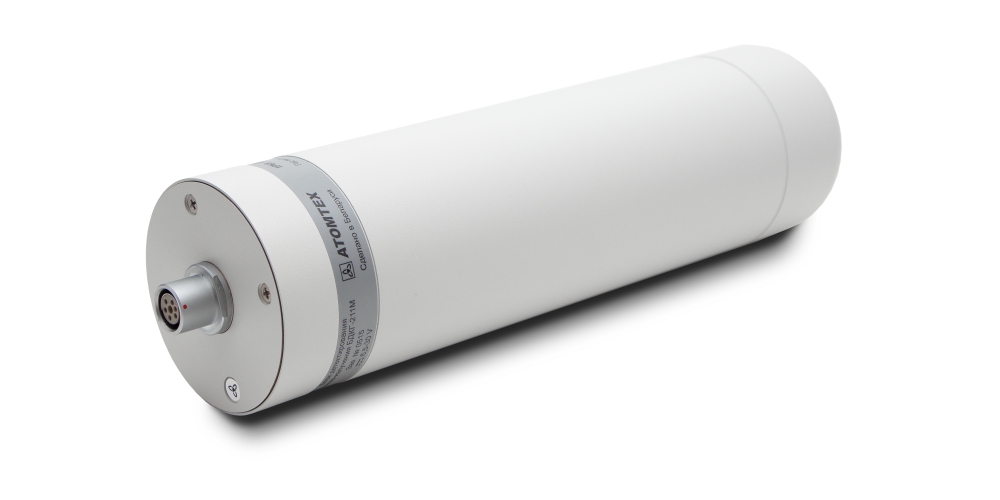

Scintillation Probe BDKG-211M
$6,180
Specification

BDKG-211M Scintillation Gamma Radiation Probe includes NaI(Tl) Ø63.5×63.5 mm (Ø2.5”x2.5”) detector assembly with LED stabilization

Detector Type / Size NaI(Tl) / Ø63.5×63.5 mm
Energy Range 20 keV – 3 MeV
Typical Resolution 7.5% at 662 keV
Ambient Dose Rate 30 nSv/h – 120 µSv/h
Typical Sensitivity,
cps/(µSv·h-1)
2450 (137Cs)
1300 (60Co)
Protection Class IP68
Interface RS485 / RS232 / USB
Operation Temperature -35°C to +55°C
Dimensions / Weight Ø90×353 mm / 2 kg
Efficiency Calculator

The calculations are based on NIST XCOM: Photon Cross Sections Database. The results are for general information purpose only. You should not rely upon them as a basis for making any decisions.

Select Dimension Units
Select Dose Rate Units
Calculated for: keV
