Scintillation Probe BDKG-28
4x4x16 inch NaI(Tl) Scintillation Gamma Probe BDKG-28 ATOMTEX
Request a quote
Specification

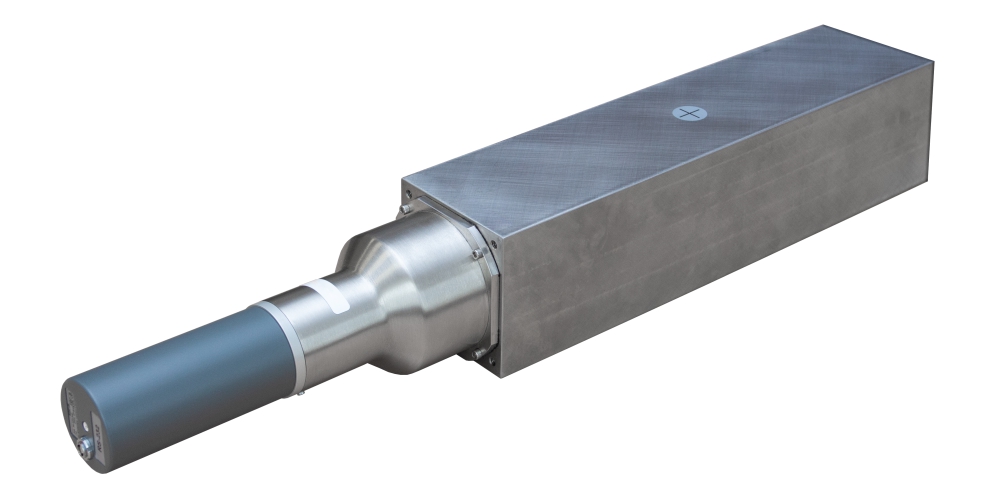

BDKG-28 High sensitivity Scintillation Gamma Radiation Probe includes NaI(Tl) 100x100x400 mm detector assembly with LED stabilization

Detector Type / Size NaI(Tl) / 100x100x400 mm
Energy Range 50 keV – 3 MeV
Typical Resolution 8.5% at 662 keV
Ambient Dose Rate 30 nSv/h – 7 µSv/h
Typical Sensitivity,
cps/(µSv·h-1)
33000 (137Cs)
19000 (60Co)
Protection Class IP54
Interface RS232 / RS485 / USB
Operation Temperature -20°C to +50°C
Dimensions / Weight 108x108x710 mm / 19 kg
Efficiency Calculator

The calculations are based on NIST XCOM: Photon Cross Sections Database. The results are for general information purpose only. You should not rely upon them as a basis for making any decisions.

Select Dimension Units
Select Dose Rate Units
Calculated for: keV
