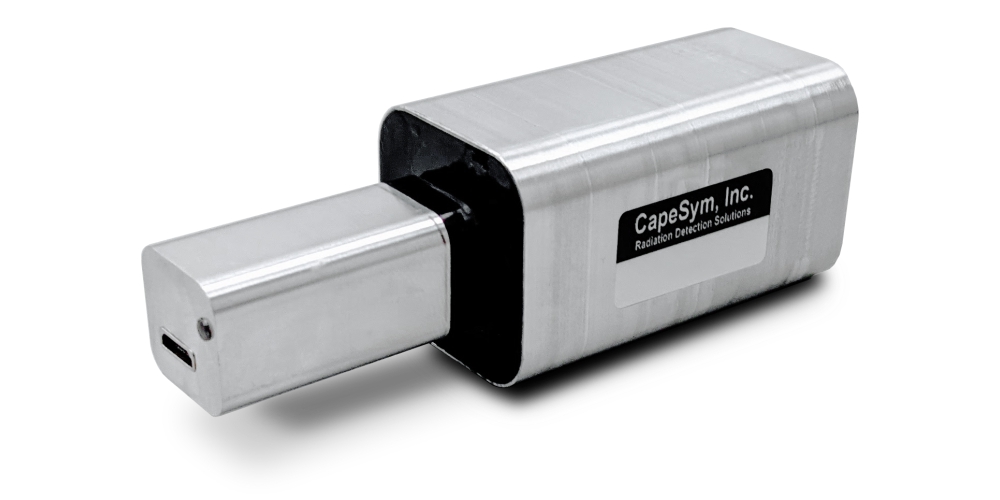

Scintillation Probe nEL-MegaPixel-MCA
$4,950
Specification

Dual-mode neutron-gamma natural (7%) 6Li enriched nEL-MegaPixel-MCA Scintillation Probe includes 28x28x50.8 mm high-performance ElpasoLight coupled to SiPM array read by ultra-compact power over USB MCA with temperature stabilization, gamma-neutron discrimination, pulse pile-up rejection, and user-friendly GUI for Windows and Android

Detector type / size Cs2LiYCl6 / 28x28x50.8 mm
Energy range 20 – 4000 keV
Typical resolution 6% at 662 keV
Maximum count rate, cps 20000
Typical sensitivity,
cps/(µSv·h-1)
635 (137Cs)
480 (60Co)
Neutron detection Yes
Protection class IP67
Interface Micro USB Type B
Operation temperature -20°C to +50°C
Dimensions / weight 31x31x95 mm / 160 g
Efficiency Calculator

The calculations are based on NIST XCOM: Photon Cross Sections Database. The results are for general information purpose only. You should not rely upon them as a basis for making any decisions.

Select Dimension Units
Select Dose Rate Units
Calculated for: keV
